100 grams/165 €
250 grams/260 €
1000 grams/345 €
Please contact us for quotes on larger quantities!

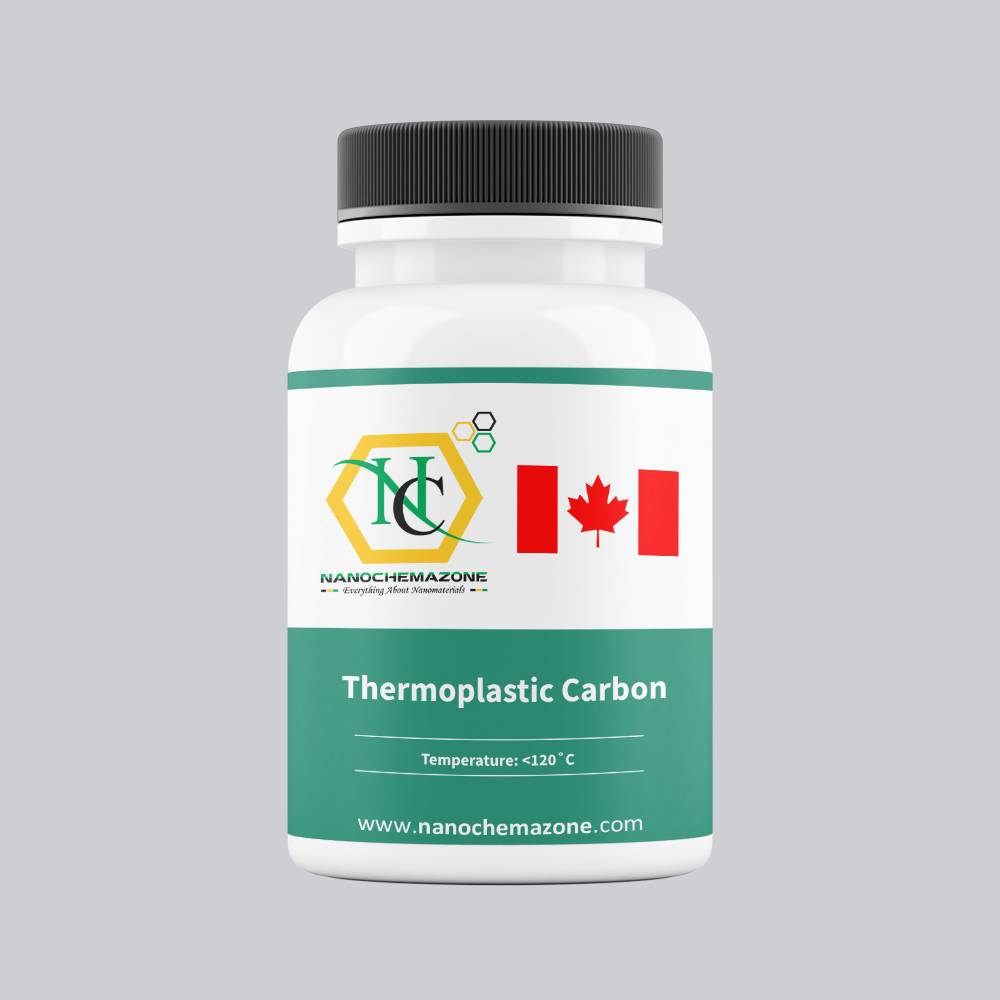

Thermoplastic Carbon Paste, Drying Temperature: 120˚C for 10 minutes
Modern materials that are highly versatile and used in many different applications where reliable bonding and good electrical conductivity are required include thermoplastic carbon paste. This innovative material creates a conductive paste that is easy to mould, reshape, and apply to a range of surfaces by fusing the benefits of thermoplastic polymers with the properties of carbon-based nanoparticles. Thermoplastic carbon paste is an essential substance in modern technology and production processes, having grown to be a key player in the field of printed electronics and beyond. The paste can print lines up to 100 m wide and has a sheet resistance of less than 15 /square/25 m. It can also dry quickly at low temperatures (120˚C for 10 minutes).
Technical Properties:
| Test |
Properties |
| Viscosity (Uncured) |
9-20 Pa.S |
| Coverage (Uncured) |
150 cm2/g at 9-12 µm dried print thickness |
| Sheet Resistance (Cured) |
<15 Ω/ /25µm (120oC) |
| Adhesion |
5B |
| Hardness |
2B |
| Substrate |
PET, glass |
| Deposition Method |
Flat-bed screen printing |
| Screen |
180 SS, 13µm emulsion |
| Flood Speed |
50 mm/s |
| Print Speed |
45 mm/s |
| Screen Resisdence Time |
>20 mins |
| Print Resolution |
100 µm |
