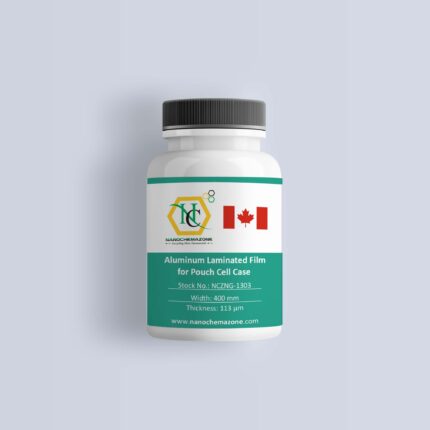

Aluminum Laminated Film for Pouch Cell Case
$357.00 – $1,095.00
Next product
Aluminum Laminated Film, Width: 400 mm, Length: 7.5 m
$295.00 – $6,238.00
Nickel Tabs, Width: 3 mm
$40.00 – $153.00
100 sets/37 €
250 sets/78 €
500 sets/139 €
Please contact us for quotes on larger quantities !!!
Nickel Tabs
Width: 3 mm
Technical Properties:
| Material | Nickel 99.99%, Adhesive Polymer Tape on the tab allows for immediate hot sealing |
| Length | 50 mm |
| Width | 3 mm |
| Thickness | 0.09 mm |
| Max. Loading Current | 3A |
| Net Weight | 128 mg/pcs |
| Application | 1. Connect to cathode current collector as polymer battery positive terminal 2. Suggested Sealing Method: (parameter below may vary from case to case) – Soft type heat-sealing blade (Blade with rubber) – 180-200 °C for upper blade – 160-180 °C for lower blade – 40 PSI (0.3 Mpa) – 3 seconds heating time |
Applications:
Nickel Tabs for use as the Negative Terminal of Polymer Li-ion Batteries
